PINSTAR SPECIFICATIONS:
The Connectors:
The plug and terminal box (plug receptacle) provide compact
weather-resistant connections for quick indoor or outdoor battery connections good for numerous industrial and vehicular applications.

The Plug
Plug terminals are encased in a two-piece insulating rubber housing.  Stainless steel garter springs reinforce the socket-type terminals to increase mating pressure and make each connection reliable. The terminals are corrosion-resistant bronze keyed to insure polarity.

The Receptacle
The receptacle is flanged for surface mounting. Pin-style terminals are fitted in the thermo-molded rubber or cast-aluminum housing. The terminals are corrosion resistant bronze keyed to insure polarity.


Copyright © 2011 Wilson Pinstar Inc.
All rights reserved.

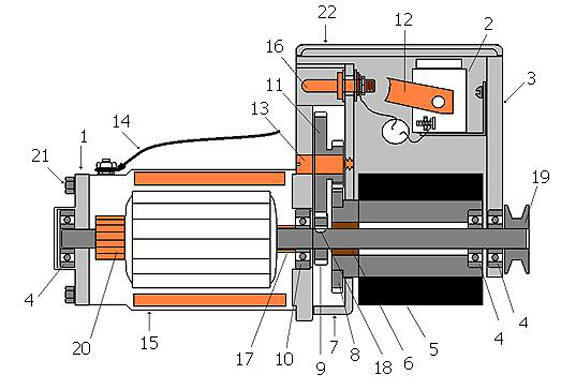

PINSTAR PORTABLE STARTER DIAGRAM




REF # PART NUMBER DESCRIPTION QTY REF # PART NUMBER DESCRIPTION QTY
1 WPI-035 Motor Cover Plate 1 12 WPI-102 Copper Buss Bar 1
2 WPI-045 Solenoid 1 13 WPI-108 Back Gear Drive Shaft 1
3 WPI-1020 Starter Housing 1 14 WPI-109 Starter Motor Cable 1
4 WPI-041 Small Bearing 2 15 WPI-110 Starter Motor 1
5 WPI-104 Rubber Drive 1 16 WPI-028 Brass Terminal 2
6 WPI-043 Oil-Lite Bushing 3 17 WPI-111 Bronze Spacer 1
7 WPI-1030 Gear Box Cover 1 18 WPI-026 Woodruff Key 1
8 WPI-105 Ring Gear 1 19 WPI-020 V-Pulley 1
9 WPI-106 Drive Gear 1 20 WPI-114 Armature 1
10 WPI-042 Large Bearing 1 21 WPI-100 Thru-bolts

4

11 WPI-107 Back Gear 1 22 WPI-1010 Solenoid Cover 1





  PLUG RECEPTACLE
Part Number WPI-113 WPI-112
Amperes Continuous 400 400
Volts 12/24 Recommended 12/24 Recommended
Connect/Disconnect (No Load) 7000 Times 7000 Times
Cable Size #1 Welding Cable #1 Welding Cable
Cable Connector Solder or Set Screw Threaded Pin
Contact Type Socket
Contact Material Bronze Bronze
Contact Mating Force 15 inch/pound 15 inch/pound
Temp Rise Above Ambient <30° C Using #1 Welding Cable <30° C Using #1 Welding Cable
Ambient Temp -40° C to 71° C -40° C to 71° C
Weather Resistant Yes Yes
Color Black Black or Aluminum
Other Testing Hydraulic Fluids & Lube Oil Hydraulic Fluids & Lube Oil
